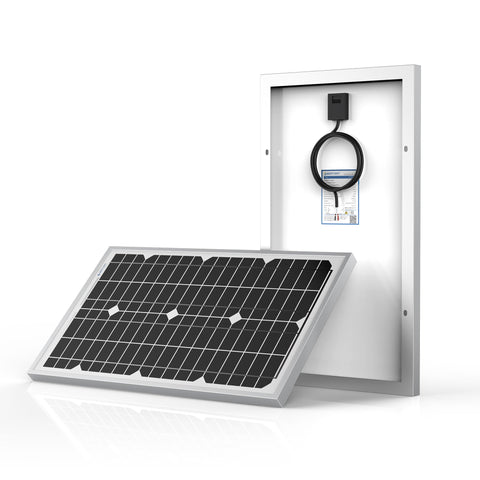

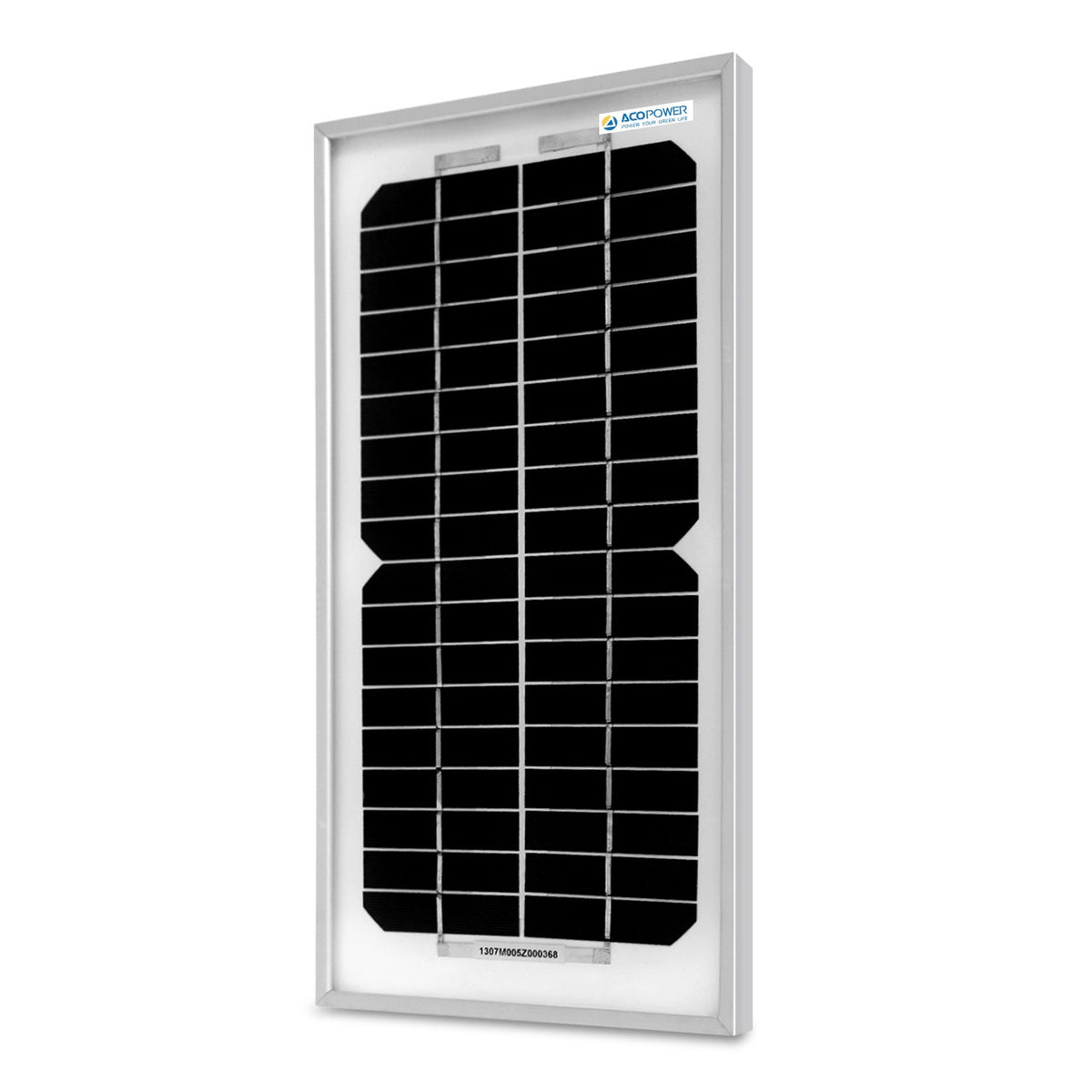

ACOPOWER Mono Solar Panel——5W, 10W, 20W, 30W, 50W
AdventureCarousel Pre-order now! 🌟Shipping starts September 15th! 🎉
Free Shipping to United States...
Estimated Dispatch within 2 Business Days
more
Estimated Dispatch within 2 Business Days
Arrive within 2-7 Business Days
*US,AU,CA only. For other regions, click "More"
more
*US,AU,CA only. For other regions, click "More"
Pickup available at Walnut USA
*Usually ready in 24 hours
more
*Usually ready in 24 hours
30-Day Return Policy｜18-Month Warranty Protection
more
Ways To Pay
Don't Miss Top Accessories
-
Regulärer Preis €222,95Verkaufspreis €222,95 Regulärer Preis€222,95
Features
High Wind
2400Pa
12V solar panel can withstand all weather conditions suchas sandstorm,strong wind,thunderstorm, blizzard, hail,etc.lt can withstand up to 2400Pa wind pressure
Waterproof
IP65
Low-iron tempered qlass surface and corrosion-resistantaluminum frame, make this solar panel 100% waterproof
Snow Cover
5400Pa
12V solar panel can withstand all weather conditions such as sandstorm, strong wind, thunderstorm, blizzard, hail, etc. It can withstand up to 5400Pa snow load
Specifications
Specification
| HY005-12M | HY010-12M | HY020-12M | HY030-12M | HY050-12M | |
|---|---|---|---|---|---|
| Characteristics | 5W | 10W | 20W | 30W | 50W |
| Open-Circuit Voltage(Voc) | 21.4V | 22.0V | 22.0V | 22.0V | 23.3V |
| Optimum Circuit Voltage(Vmp) | 18V | 17.5V | 17.5V | 17.5V | 19.8V |
| Short-Circuit Current(Isc) | 0.31A | 0.61A | 1.23A | 1.84A | 2.73A |
| Optimum Circuit Current(Imp) | 0.28A | 0.57A | 1.14A | 1.71A | 2.53A |
| Maximum Power at STC(Pmax) | 5W | 10W | 20W | 30W | 50W |
| Module Efficiency | 17.8% | 10.74% | 10.89% | 12.12% | 19.2% |
| Operating Temperature | -40°C ~ +85°C | -40°C ~ +85°C | -40°C ~ +85°C | -40°C ~ +85°C | -40°C ~ +85°C |
| Maximum System Voltage | 1000V DC | 1000V DC | 1000V DC | 1000V DC | 1000V DC |
| Power tolerance | ±3% | ±3% | ±3% | ±3% | ±3% |
| Type of cell | Mono-crystalline 125 x 125 mm (5 inches) | Mono-crystalline 125 x 125 mm (5 inches) | Mono-crystalline 125 x 125 mm (5 inches) | Mono-crystalline 125 x 125 mm (5 inches) | Mono-crystalline 158.75 x 158.75 mm (6 inches) |
| Dimensions | 320x160x25mm (12.6x6.3x1.0 in) |
295x290x20mm (11.6x11.4x0.8 in) |

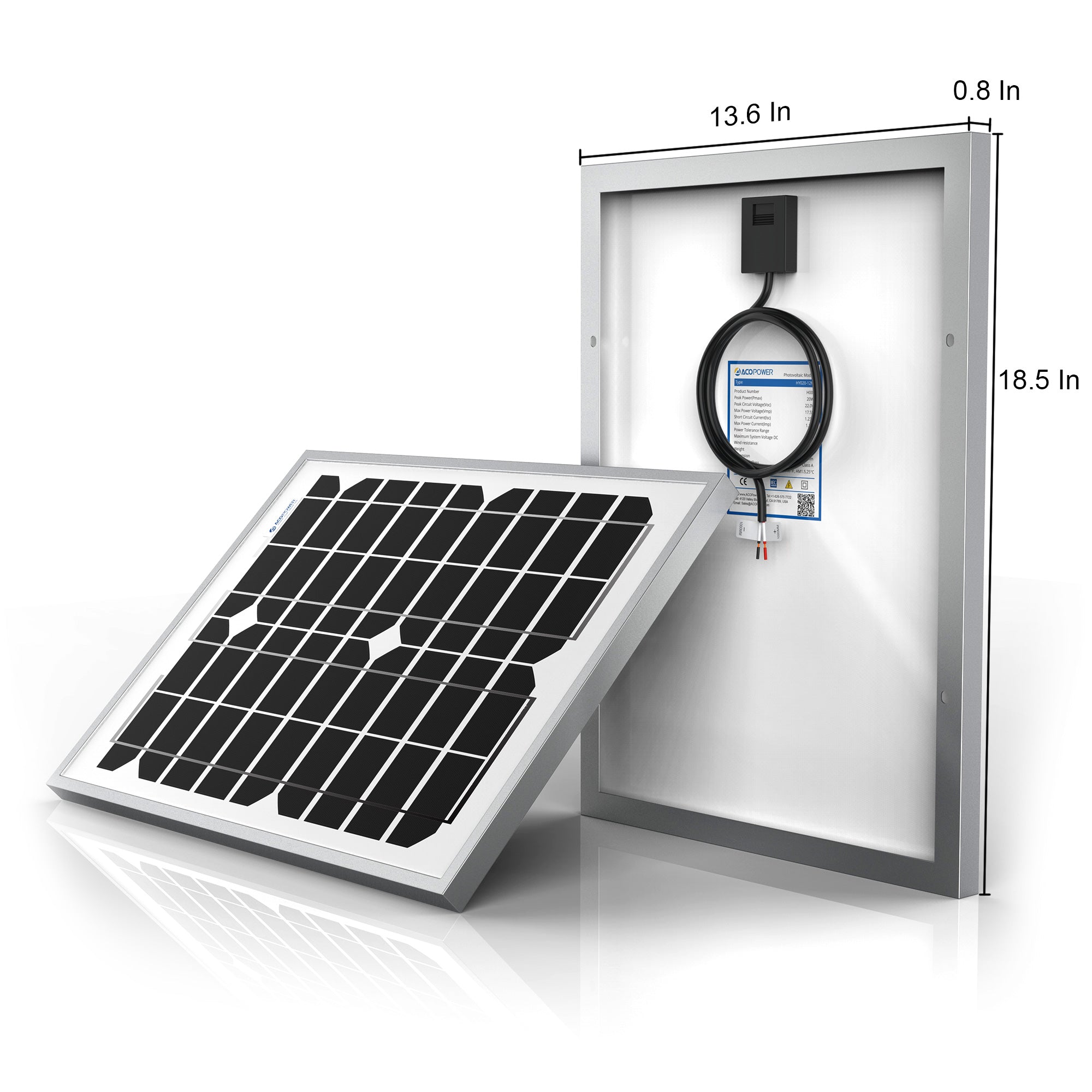

345x470x20mm (13.6x18.5x0.8 in) |

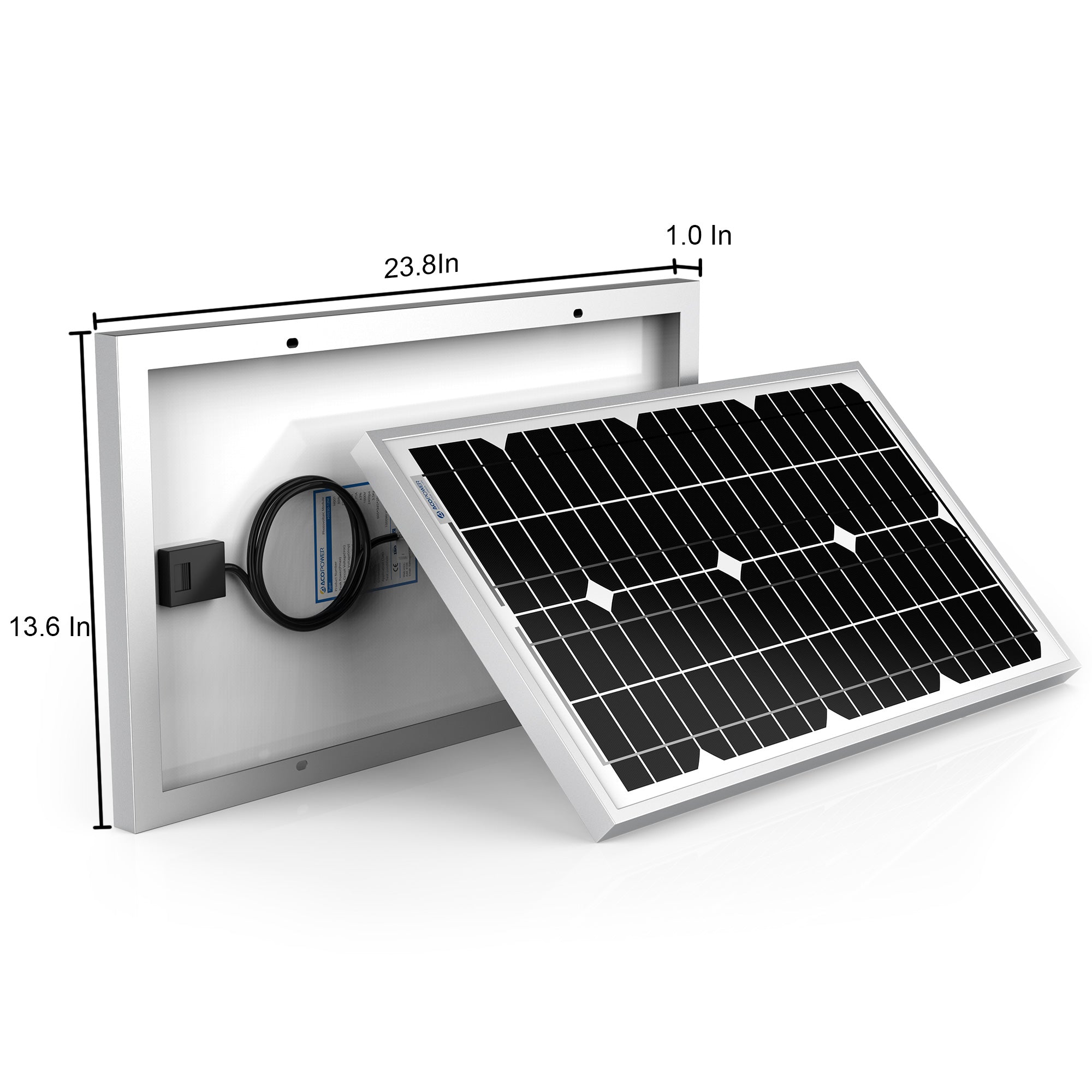

605x345x25mm (23.8x13.6x1 in) |
510x510x30mm (20x20x1.19 in) |
| Weight | 1.0 Kg (2.2 lbs) | 1.0 Kg (2.2 lbs) | 2.8 Kg (6.2 lbs) | 3.5 Kg (7.7 lbs) | 3.1 Kg (6.8 lbs) |
| Workmanship Warranty | 10-Year | 10-Year | 10-Year | 10-Year | 10-Year |
| Performance Warranty | 25-Year Power Output Warranty |
25-Year Power Output Warranty |
25-Year Power Output Warranty |
25-Year Power Output Warranty |
25-Year Power Output Warranty |
Swipe left
FAQs
FAQs
Frequently bought together
Reviews
Customer Reviews
Based on 12 reviews
100%
(12)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
W
Great product!! Produces enough charge for my needs.. You Just need to solder a blocking diode depending on your purpose or use a charge controller. Or you could do both that way if your controller craps out you can still use it in an emergency. You might get a lower voltage but it's negligible, and if not just get two panels. Will probably buy more
M
Great Solar Panel, installed on garage shed rooftop very easily with aluminum strip mount. Charges 12 volt batteries that power a security camera.
The panel puts out enough current to power the wireless camera on its own. It also charges the battery on my Utility Vehicle. The panel is made quite well and withstood the heavy rainfall and 65 mph winds we have during the winter months. I look forward to years on use with this panel. It is the only power source for my garage shed.
B
Have this hooked up to Renogy 10 amp charge controller and LiFePO4 battery to power a cellular game camera. Works perfect and keeps the battery fully charged
R
Excellent 30 Watt panel. Look no further this is the best. As soon as I unpacked it I Hooked a multimeter to it and the panel was putting out 19.7 voltas and 1.7 amps. I connected the panel to a solar charge controller that had a 12V battery connected to the controller. The battery had 11V when I connected the panel. I put the panel, battery and controller in the sun for six hours and tested the battery again. It showed 12.44 volts. Yay, I was very impressed.
Very impressive, very well made. Fast shipping.
D
Bought this for my 22' sailboat and I love it. I go out both days of the weekend whenever possible and use my depth gauge and speaker system all of the time when I'm out. Battery drops from 14v to ~12v by the end of Sunday. A few days later it's back up at 14v. I've never even bothered to hook up the motor's generator to the battery since this works so well and so I only use the motor when I need it for propulsion, not for electricity.
